Prodám dva SW:
A clear reproduction, very low fundamental resonance, very, very high volume, and stable even at the highest levels: that is how a state-of-the-art car audio bass speaker should perform even in smaller cabinets. The new SONIC bass speakers perfectly meet those requirements and are available at such a favourable price which for these high-tech woofers can only be realised by CARPOWER.

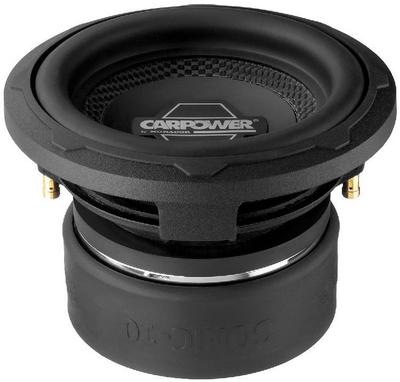

Top-class car HiFi subwoofer, 2 x 500WMAX, 2 x 300WRMS, 2 x 2Ω
Bass speaker of highest power capability with a diameter of 25cm (10"), dual voice coil, stable diecast basket, the carbon fibre cone features an exclusive rubber surround of long excursion. Even the 25cm SONIC is driven by the same motor system as the larger models. The linear excursion is also ą25mm at full drive which allows an impressive reproduction of the bass frequencies. Although the efficiency is not exceptionally high, deafening volume levels can still be achieved in combination with the huge power capability. The required cabinets with only 15 litres in a closed cabinet or 25-35 litres bass-reflex are of such a small size, the installation of the SONIC-10 is sometimes only possible by placing the huge magnet to the outside.
Technické parametry
Impedance (Z) 2 x 2Ω
Resonant frequency (fs) 31Hz
Max. frequency range f3-300Hz
Music power 2 x 500WMAX
Power rating (P) 2 x 300WRMS
SPL (1W/1m) 84dB
Suspension compl. (Cms) 0.14mm/N
Moving mass (Mms) 188g
Mech. Q factor (Qms) 8.25
Electr. Q factor (Qes) 0.53
Total Q factor (Qts) 0.49
Equivalent volume (Vas) 24 l
DC resistance (Re) 2 x 1.9Ω/1 x 3.8Ω
Force factor (BxL) 17Tm
Voice coil induct. (Le) 2 x 0.7mH/1 x 2.8mH
Voice coil diameter 75mm
Voice coil former KAPTON
Linear excursion (XMAX) ±25mm
Eff. cone area (Sd) 346cm2
Magnet weight 180oz
Weight 14.5kg
08.03.2008, 13:11 | DJ.UFÍK
