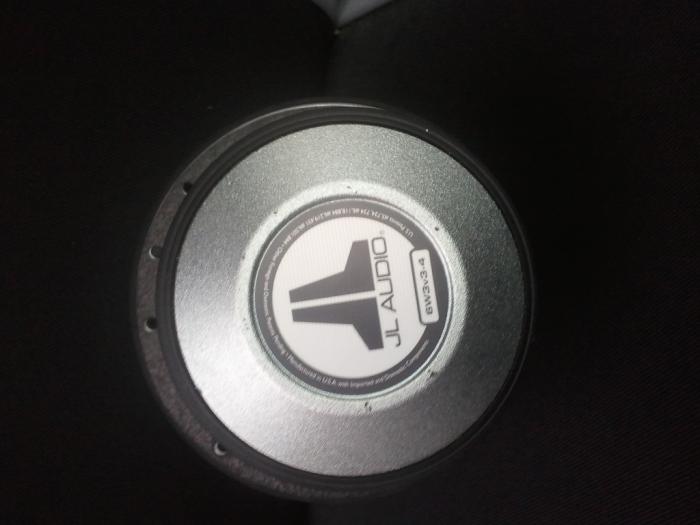

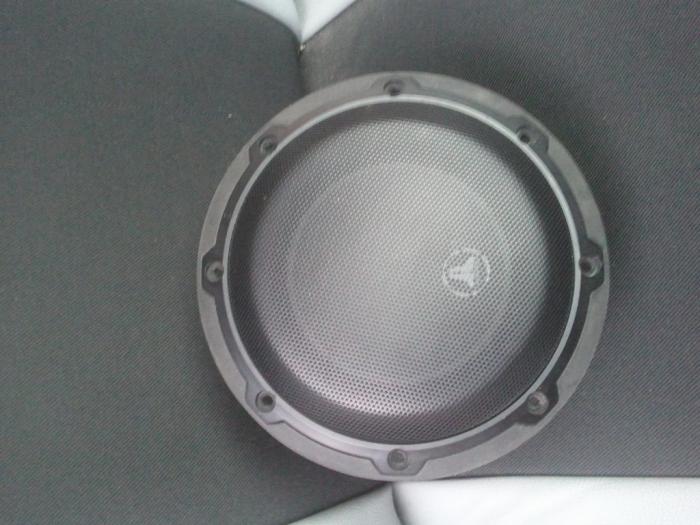

predam tento subwoofer je plne funkcni nebol pretazovany pustal som nan to co odporuca vyrobca 50W-150W mam k nemu manual dokupoval som nan originalnu JL Audio mriezku co ma vysla s postovnym 20 euro samotny subwoofer stoji v obchode 150 euro

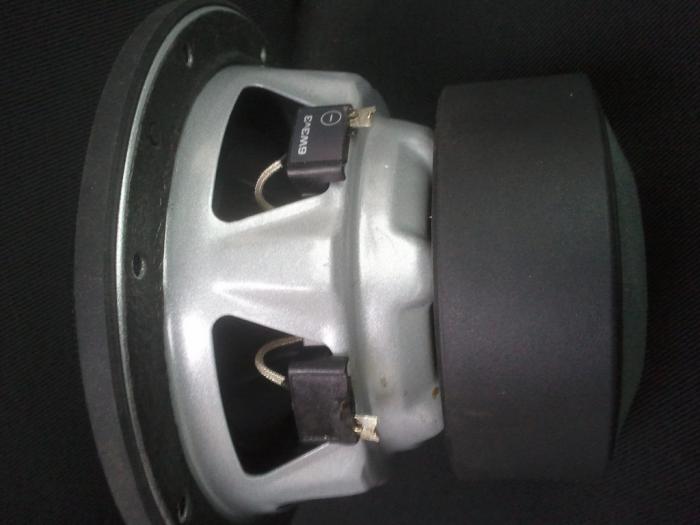

jedine co som na nom spravil skratil zadne kontakty aby kable nevypadavali mozete vidiet na foto
cena konplet aj s mriezkou je 100 euro osobne by som ho nepredaval ale mam objednany presne tento isty ale 8 palcovy takze tento nepotrebujem predat
parametre
Nominal Diameter 6.5 in / 165 mm
Overall Diameter (A) 6.85 in / 174 mm
Mounting Hole Diameter (B) 5.5 in / 140 mm
Bolt Hole Circle (C) 6.125 in / 156 mm
Magnet Diameter (D) 4.25 in / 108 mm
Mounting Depth (E) 4.25 in / 108 mm
Driver Displacement 0.02 cu ft / 0.57 L
Net Weight 6.1 lb / 2.8 kg
Free Air Resonance (Fs) 41.80 Hz
Electrical “Q” (Qes) 0.533
Mechanical “Q” (Qms) 11.027
Total Speaker “Q” (Qts) 0.508
Equivalent Compliance (Vas) 0.181 cu ft / 5.13 L
One-Way Linear Excursion (Xmax)* 0.35 in / 8.89 mm
Reference Efficiency (no) 0.067%
Efficiency (1 W / 1 m)** 80.49 dB SPL
Effective Piston Area (Sd) 17.36 sq in / 0.0112 sq m
DC Resistance (Re) 3.476 Ω
kontakt peter.barka@centrum.sk pripadne tel. 0914179358
28.11.2012, 12:53 | kovvalsky
