17.09.2012, 20:20 | dustin

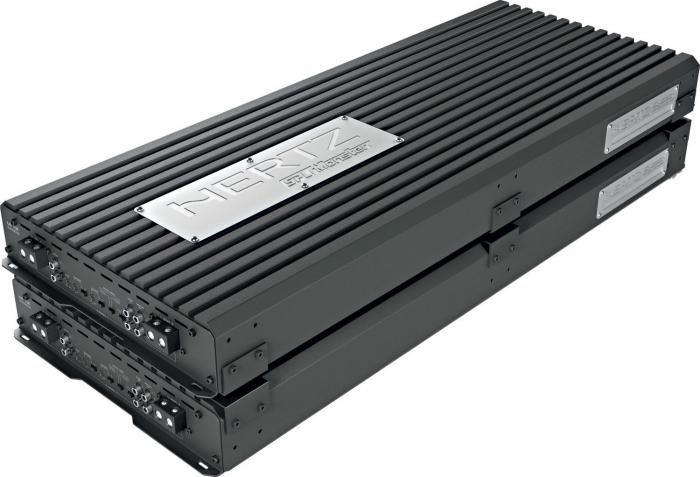

Predám 15kW zosilňovač Hertz MP 15K Unlimited. 100% stav, použitý 1x pri meraní reálneho výkonu do článku v časopise. Cena a ďalšie foto na požiadanie - len vážny záujem.

 17.09.2012, 22:09 | Siggi_z_BA

Jj ten sme testovali, slusne zelezo

 17.09.2012, 22:15 | petis

Dobrej zesík. Mužu vedět ty výkony?

 18.09.2012, 00:36 | dustin

Output Power (RMS) @ 12 VDC, THD 1%
Load Impedance Stereo Bridge
4Ω 1000 W x 2 4000 W x 1
2Ω 2000 W x 2 6000 W x 1
1Ω 3000 W x 2 8000 W x 1

Output Power (RMS) @ 14.4 VDC, THD 1%
Load Impedance Stereo Bridge
4Ω 1500 W x 2 5600 W x 1
2Ω 2800 W x 2 9000 W x 1
1Ω 4500 W x 2 12000 W x 1

Output Power (RMS) @ 16 VDC, THD 1%
Load Impedance Stereo Bridge
4Ω 1800 W x 2 6800 W x 1
2Ω 3400 W x 2 11000 W x 1
1Ω 5500 W x 2 15000 W x 1

Output Power (RMS) @ 18 VDC, THD 1%
Load Impedance Stereo Bridge
4Ω 2300 W x 2 8800 W x 1
2Ω 4400 W x 2 12000 W x 1
1Ω 6100 W x 2 15500 W x 1

 18.09.2012, 00:39 | dustin

zakladne informacie:

Power supply voltage: 8÷18 VDC
Idling current: 8A
Idling current when off: 3 mA

Distorsion - THD(100Hz @ 4Ω): 0.15%
Bandwidth (-3 dB): 10 ÷ 500Hz
S/NRatio (A weighted @ 1V): 69 dB
Damping factor (100Hz @ 4Ω): >950
Pre-In sensitivity: 0.3 ÷ 7 V
Pre-In impedance: 15 kΩ
