Number of Channels 4
Published Rated Power
4x 50watt RMS a 4ohm
4x 200watt RMS a 1ohm
bridged 2x 400watt RMS a 2ohm

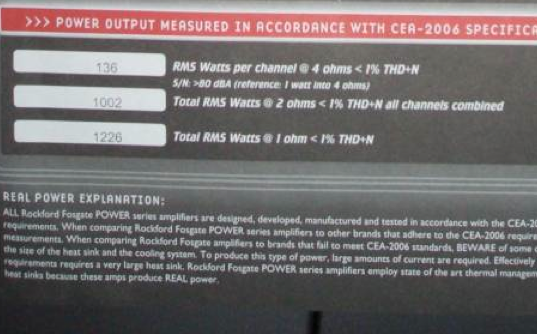

Rated VS Actual Power
Average Actual Power by Rockford Fosgate
4x 96watt RMS a 4ohm
4x261watt RMS a 1ohm
bridged 2x 522watt RMS a 2ohm
Power encreate % above rated Power 30.50%
Bridgeable:Yes
Crossover Controls
High-Pass (HP): 40-4kHz 12db or 24db/Octave Linkwitz-Riley
Low-Pass (LP): 40-4kHz 12db or 24db/Octave Linkwitz-Riley
10x crossover switch
Infrasonic filter: 27Hz 12db/Octave
Tone Controls
Bass: 0dB to +18dB @ 35-70Hz
Signal Input
Low level: 2 RCA pair
Input switch: 2/4 ch.
Signal Output
Low level: 1 RCA pair
Preamp Output Crossover: HP/AP/LP 12db/Octave Butterworth

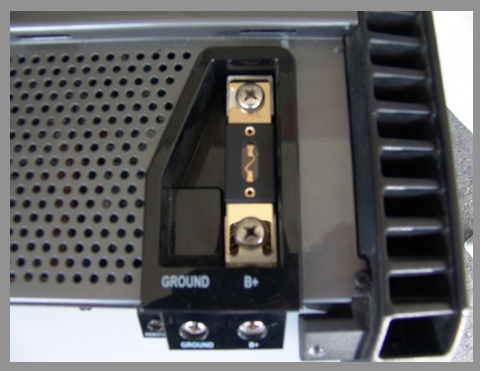

Power Input Connector
Block
Power Wire Gauge
1/0 AWG
Speaker Output Connector
Screw terminal barrier strip
Speaker Wire Gauge
8 AWG to 18 AWG
Heat Sink Type
Cast aluminum
Cooling
Fan Cooled
Remote Controls
ParaPunch Bass EQ (included with cable)
Visual Indicators
Power On
Thermal Status
Speaker Protection
Circuit Topology Class
Class A/B
Frequency Response
20Hz to 20kHz +/- 0.5 dB
Shipping Weight
26.0 Lbs. (11.8 Kg.)
Dimensions (HxWxL)
2.6 x 12.8 x 23 (in)
6.6 x 32.5 x 58.4 (cm)
